Mass Mixer

Mass Mixer
Mass Mixer
Product Code : JAI 25
Brand Name : JAI AMBE ENGINEERS
Trade Information
  • Unit of Measure
  • Piece/Pieces
  • Payment Terms
  • Cash in Advance (CID), Cheque
  • Supply Ability
  • 100 Pieces
  • Delivery Time
  • Months
  • Sample Available
  • Yes
  • Sample Policy
  • Sample costs shipping and taxes has to be paid by the buyer
  • Packaging Details
  • Plastic Wrap & Then Corrugated Box.
Product Description

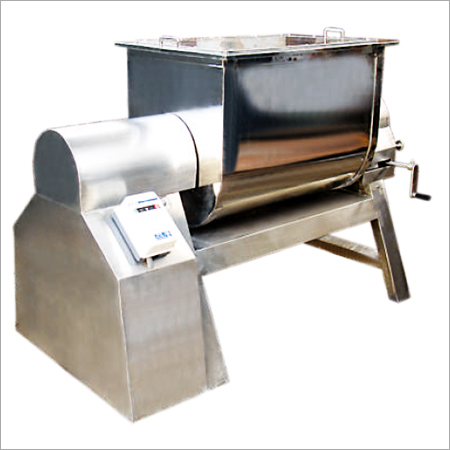

We are a trusted manufacturer and supplier of high quality Mass Mixer, which is utilized for mixing dump or dry materials and for tablet granulation. This product is equipped with a 'U' shaped trough, solid S.S end plates, discharge valve, S.S shaft with specially developed paddles. The shaft is fitted with heavy duty gear box and motor. The shaft is supported on heavy duty bearing blocks at both the ends and offered with PTFE seals and stuffing box.

Top cover is given with acrylic sheet for simple visibility at the time of mixing operation. The motor-gear box assembly is fully covered in enclosure control panel box is offered with the machine with reverse as well as forward switch for the shaft. Mild Steel components are epoxy painted or cladded with Stainless Steel sheet for GMP model. All Stainless Steel parts are polished to mirror finish from outside and inside parts are malt finished. We offer this Mass Mixer at negotiable prices.

Salient Features: Standard and GMP model with contact parts in SS 304/SS 316 quality.
Specially designed flush type outlet valve or butterfly valve (optional).
Shaft sealing at inside and out side with PTFE bush and SS stuffing box at outside.
SHELL: Consisting of 'U' trough of suitable dimensions. Construction of S.S. and side plates duly M.S. stiffened from outside and from inside with S.S.
CHARGING: From the top charging can be done through a hinge able lid, hopper or Nozzle can be provided for additional spraying of additives
DRIVE: Consisting of suitable H.P. TEFC 3 phase ac 415v / 50 cycles motor coupled to suitable worm gear, with driving shafts mounted on suitable Plummer block.
MOC: All contact parts in S.S. Constructions. Complete unit with S.S. cover and all surfaces polished to mirror finish. MS parts dull painted to smooth finish.

Options Available:
The control panel is mounted on platform and is provided with Unit in S.S. 304
